Modifying my cheap guitar – Part II – The Appearance

Continuing to the first part, I will now tell about how I modified the look of my guitar. I considered doing swirl painting or buying a customized pickguard online, but none of those options got me excited.

The Pickguard

After some time thinking and incubating ideas I started the composition by picking trippy and psychedelic elements, being Alice in Wonderland a huge influence as well as the line “The rabbit is just a monkey in disguise” of the song Organ Grinder by Marilyn Manson.

Unfortunately, visual arts are not part of my skill set. I contacted a friend artist (Daniel de Carvalho) with the ideas and soon he started to present me some sketches. Some months and some drawings later he started to work on the pickguard.

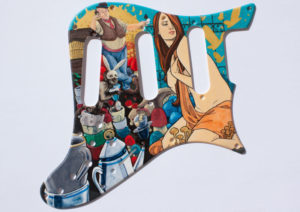

He developed the art using acrylic paint and India ink. Check out more photos of the process and other works on his page, Daniel is a very experienced, talented and passionate professional.

Pickup Selector

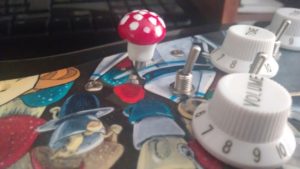

While assembling the guitar pickguard with Daniel, we come up with the idea of a mushroom pickup selector. I really liked the concept and resolve to try it out.

I used a recipe of cold porcelain. To my surprise it’s a very cheap and easy to use material, I have some leftover and consider using it on other projects. I regret choosing nail polish for painting, it’s too thin and inconvenient to use.

Posted on

Discoveries of the Month – November/2016

Wow! My second DotM post!
Turns out that the biggest discovery of this month is that NaNoWriMo is not easy at all. Next year I will prepare myself and try again.
Well, let’s get to the point of the post:

Web Development

Microjs: A selection of small footprint JavaScript micro-libraries and micro-frameworks for all sort of things.

Tech

PythonTutor: Visualize your code in execution, kinda like a debugger. It now has support to Python, Java, JavaScript, TypeScript, Ruby, C, and C++. Fun project and may help you understand how programming languages work.
Detexify: Struggling to find a symbol for LaTeX? Just draw it!

Music

Paranoia: Crossover/Thrash Metal band from the late eighties. They released just one album though.
Hellbenders: Stoner rock band from Goiânia/Brazil.
My Life with the Thrill Kill Kult: Industrial rock band from the late eighties. Been listening to industrial since my teenage years and, strangely, never heard of them before.
Eloy: (German) Progressive Rock band. Underrated in my opinion.
Shackles: Death/Thrash Metal band perfect for headbangin’. It’s a shame they split up.
Electric Octopus: Psychedelic/Jazz/Experimental… there is not enough genres to tag these guys.
Brunt: Instrumental stoner rock with a mix of trippy clean tones and heavy fuzz guitars.
Lee Van Cleef: (not to be confused with Lee Van Cleef) Psychedelic acid rock from Italy.
Sasquatch: Another stoner rock band. Great sound and they are really a bastardized version of GFR as they claim. Should be on the regular playlist of any fan of the genre.

YouTube Channels:

The Art of Weapons: An U.K. teenager run this channel since he was around 13 years old. Focused on crossbows and slingshots, but has a lot of DIY information for HDPE plastic, wood lathe and even forging aluminium.
Stoned Meadow of Doom: Channel posting albums from underground stoner/sludge/doom bands. Some of the bands presented here I found on the channel.

Posted on

Modifying my cheap guitar – Part I – The Wiring

A friend lend me his electric guitar for quite a while when I determined to learn a string instrument. After a lot of months I finally got my act together and bought a cheap an inexpensive electric guitar bundle(with a 15-Watt amplifier, gig bag and strap).

After a period of time it occurred to me to experiment, modify and change some aspects of the guitar wiring. All the applied modifications were found over the internet and, as you can imagine, there is nothing innovative.

Modifications:

  1. Switch between the original tone capacitor and a new one.
  2. Hard clipping using two diodes connected in antiparallel.
  3. Neck ON Switch (David Gilmour wiring).
  4. Treble bleed mod.

Motivation

It was a cheap guitar, however its value reflects its quality. I was a bit unsatisfied with its tone, with a little research I found out some ways to improve the tone.

Schematics and part list

guitar-wiring

C1 - 0.002uF / 2nF / 2000pF
C2 - 0.047uF / 47nF / 47000pF (original film capacitor)
C3 - 0.1uF / 100nF / 100000pF (ceramic capacitor)
D1,D2 - 1N5819
R1 - 100k Ohms resistor
SW - DPDT

Switch between the original tone capacitor and a new one

Simple selector between two capacitors. The second one helps to get a darker sound and not so strident like Stratocasters usually are.

Hard clipping using two diodes connected in antiparallel

Sometimes called as “passive distortion” or even wrongly as “passive overdrive”, it’s a fun modification. Gives a harsh sound, but loses volume since it clips the sound without any boost.

Neck ON Switch (David Gilmour wiring)

This wiring, when enabled, connect the neck pickup with whatever selection in the 5-way switch. David Gilmour may be the most famous musician to use this mod. Now with up to 8 possible combinations, the guitar has so much possibilities. In my opinion, the sound is colorful now.

Treble bleed mod

When you turn the volume down on a guitar you can feel that the sound loses a bit of treble. It happens because the pickup, the volume potentiometer and the capacitance in the cable act as a low pass filter. To compensate this loss we “bleed” more treble into the signal as the volume is turned down.

Further modifications

After all that, I ordered and installed a hotrail pickup in the bridge position. Unfortunately I don’t have any pictures, but If I did it again today I would use the Gilmour/neck mod with the bridge pickup instead of neck. I customized the pickguard with an artist, that being the subject of the Part II of this post.

Conclusion

guitar-guts-and-componentsI learned a lot in the process. From something stupid like how a 5-way switch works to something unexpected like fixing to a stripped screw hole.
